Fox ESS Launches brand new all-in-one device
The new Fox ESS EVO Series, get the low-down, you can be the first to know pre-order, quote and delivery dates with Mr Solar
Next generation energy storage.

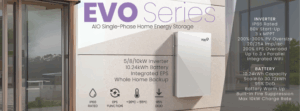

The Fox EVO Series is a fully integrated inverter and battery solution with integrated (EPS) emergency power supply, that offers unrivalled performance, It’s a true all-in-one, boasting a sleek minimalist design optimised for installation both indoor and outdoor locations.
Inverter Features:
- 5/8/10kW inverter options + 200% Oversizing
- 3 x MPPT Use 3 roofs instead of 2 like most inverters
- 200% PV oversize ratio
- 80V start-up
- LCD screen with magnetic cover
- 20A/25A Imp/Isc
- 200-300% PV Oversize
- EPS with 200% overload capability
- Export limitation (CT/METER/DRM0/ESTOP)
- Integrated Wi-Fi (no external dongle)
- Parallel mode (up to 3 modules)
- Protection level IP66
Battery Features:
- Integrated 10.24kWh LFP battery
- Scale to 30.72kWh with parallel units
- High charge rates (up to 10kW per unit)
- 95% DoD
- IP66 rated
- Integrated battery warm-up
- Built-in fire suppressant
- High round-trip efficiency
EVO Features
Optimised for outdoor installation – fully IP66 rated and incorporating battery warm-up technology.
Style & substance – a high-density solution, with a depth of only 19.7cm and with magnetic panels to conceal all inputs. Includes a glossy, high quality front panel for sleek, minimalistic styling.
IP66 Rated – Suitable for indoor and outdoor installation for maximum flexibility.
EVO Series warranty – 12-year warranty (must be registered online to qualify).
Fox Cloud – Monitoring
Fox Download brochure
All Fox ESS products are compatible with the powerful and intuitive Fox ESS monitoring platform – FoxCloud.
You can monitor system performance anywhere in the world with the user-friendly app or web portal. The Fox app is compatible with both iOS and Android devices. The app can be used to view key system data and performance, both live and historic, and to adjust battery settings so that you can maximise savings based on time of use.
