Description

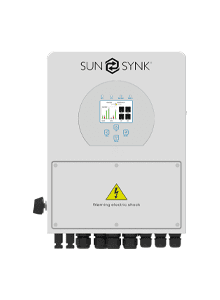

Sunsynk Sun 5K ECCO Hybrid Inverter
Part No: SUN-5.0-ECCO Storage Systems – Hybrid Inverter
The Sunsynk 5kW ECCO hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, the national grid, generator, or even a wind turbine! Also, multiple units can be installed on the same site and with connection of up to 16x 5.12kWh batteries to a single inverter.

Additional features:

Dual MPPT design
Compatible with most Lithium-ion batteries and Lead Acid batteries
Mobile App for monitoring – Sunsynk Cloud
IP65 rated
Automatic switching from Grid-Tied to Off-Grid mode
Zero export function
Up to 16 units with the same firmware can be paralleled.
Essential and non-essential load outputs
Comes with Wi-Fi logger and CT

• Weight:
  25 kg
  Rated Power:
  5,000 W
  Min PPT Voltage:
  150 V
  Max PPT Voltage:
  425 V
  DC Startup Voltage:
  125 V
  DC Shutdown Voltage:
  0 V
  Max Input Voltage:
  500 V
  Max DC Power:
  6,500 W
  Max AC Power (5 Minutes):
  5,500 W
  Surge AC Power (1 Second):
  11,000 W
  Max DC Current:
  26 A
  Max DC Inputs:
  2
  Has DC Fuses:
  0
  Connector:
  MC4
  Included Connectors:
  0
  Euro Efficiency:
  96.5 %
  Transformer:
  None
  MPPT Quantity :
  2
  Has Integrated DC Switch:
  Yes
