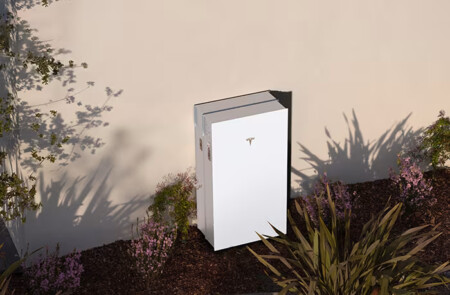

Powerwall 3 Expansion. 13.5kWh DC Battery Expansion Only

Powerwall 3 supports up to 20 kW DC of solar and providing 11.04 kW AC of continuous power per unit. It has the ability to store up to 13.5 kWh of energy and start heavy loads rated up to 185 A LRA, meaning a single Powerwall 3 can support the power needs of most homes.

Powerwall 3 is designed for fast and efficient installation and modular system expansion. With multiple Powerwall 3 units and/or Expansions, it is easier and more affordable to scale up customers’ systems to provide 44 kW AC of continuous power and to store up to 94.5 kWh of energy

Included Please choose and email us.

• TES-PW3-2MHARN – 0.5m Harness – 1875157-05-D
• TES-PW3-4MHARN – 2m Harness – 1875157-20-D
• TES-PW3-4MHARN – 4m Harness – 1875157-40-D

Optional: ring for costs

• TES-PW3-EXSTACK – Multi PW Stacking Kit – 1978070-00-B
• TES-PW3-EXWM – Wall Mounting Bracket – 1978069-00-C
• DC Expansion Pack Only. Requires Powerwall 3 and Gateway to function.

Supplier Part No:1807000-20-BWeight:110 kgBattery Type:Lithium IonNominal Energy:13500 WhDepth of discharge:100.00 %Voltage:230 VContinuous Discharge Rate (Normal Use):5000 WMaximum Discharge Rate (5 Minutes):5000 WSurge Discharge Rate (15 Seconds):5000 WMaximum Charge Rate (5 Minutes):11000 W

Tesla app for total control: Manage your energy system from wherever you are, and trust smart algorithms to maximise your savings, alongside export tariffs and smart time of use tariffs.
